Development Process
Step 1: Create a product, and select TCP transparent transmission.
First, you need to complete the account registration in the platform and create a product of TCP transparent transmission.
Step 2: Create a device and record the device ID and other information.
Click “Add Device” in the page, enter the device name and authentication information (i.e. device number), and record the device number.
Step 3: Upload the Lua script.

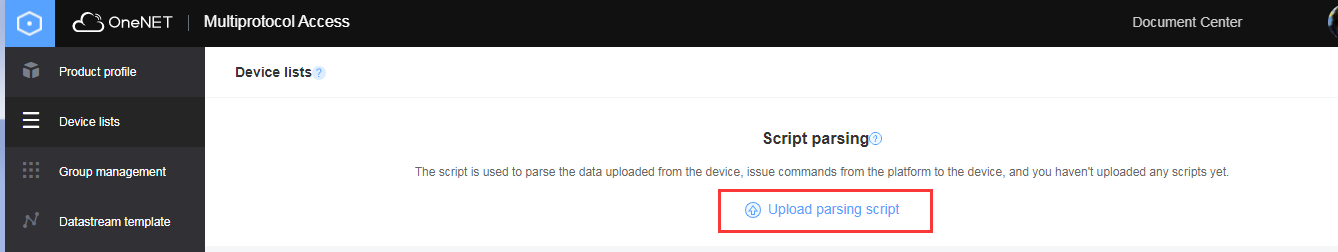

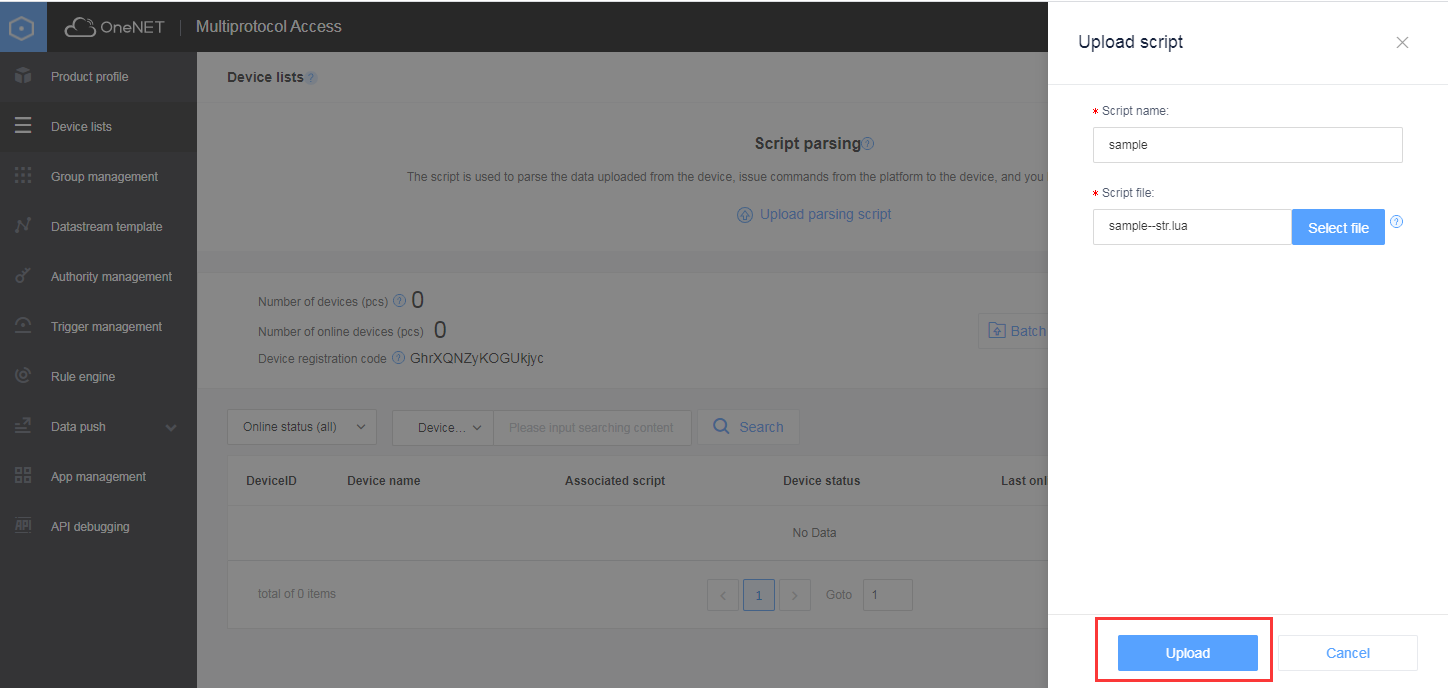

Upload the analysis script into the product in the page, as shown below:
Script example:
The script has the following features:
“Hello” is issued at intervals of 5 seconds after the device is connected.
After the user uploads data, the platform responds “received”.
Convert the data uploaded by the user into a HEX string, and save it as a data point in the ds_test data stream.
-----------------------------------------------------------------------
-- Instructions for use:： --
-- V1.3 --
-- Users need to implement 2 functions. --
-- 1. Issue the data task initialization function regularly: device_timer_init(dev) [optional]. --
-- 2. Analyze the data (e.g. heartbeat) uploaded by the device: device_data_analyze(dev) --
-----------------------------------------------------------------------
-------------------------------------------------------------------------------
-- Register the C function. --
-- u2f converts the 32-bit integer memory data to float type (different from value conversion). --
-- Similar to C code*(float*)(&u) --
-- function u2f(u) --
-- @param u number integer --
-- @return Return a float in case of success and nil otherwise. --
-- @example local u = 123 --
-- local f = u2f( 123 ) --
-- --
-- time Get the timestamp, the number of milliseconds from (00:00:00 UTC, January 1, 1970) --
-- function time() --
-- @return Return the current timestamp. --
-- @example local t = time() --
-- --
-- year, get the year (year-1900) --
-- function year(t) --
-- @param t number timestamp, the number of seconds from (00:00:00 UTC, January 1, 1970) --
-- @return Return the year --
-- @example local y = year( t ) --
-- --
-- month Get the month (0-11) --
-- function month(t) --
-- @param t number time stamp, the number of seconds from (00:00:00 UTC, January 1, 1970) --
-- @return Return the month --
-- @example local m = month( t ) --
-- --
-- day Get the day (1-31) --
-- function day(t) --
-- @param t number time stamp, the number of seconds from (00:00:00 UTC, January 1, 1970) --
-- @return Return the day --
-- @example local d = day( t ) --
-- --
-- hour Get the hour (0-23) --
-- function hour(t) --
-- @param t number time stamp, the number of seconds from (00:00:00 UTC, January 1, 1970) --
-- @return Return the hour --
-- @example local h = hour( t ) --
-- --
-- minute Get the minute (0-59) --
-- function minute(t) --
-- @param t number time stamp, the number of seconds from (00:00:00 UTC, January 1, 1970) --
-- @return Return the minute --
-- @example local m = minute( t ) --
-- --
-- second Get the second (0-59) --
-- function second(t) --
-- @param t number time stamp, the number of seconds from (00:00:00 UTC, January 1, 1970) --
-- @return Return the second --
-- @example local m = second( t ) --
-------------------------------------------------------------------------------
--------------------------------------------------------
-- Convert the bytes string to hex string --
-- @param s string bytes string --
-- @return Return the hex string, similar to “0A0B0C0D...” --
-- @example local hex = to_hex("\2\2\0\150\0\37\206") --
--------------------------------------------------------
function to_hex(s)
local i
local t
t={s:byte(1,s:len())}
for i=1,#t do
t[i]=string.format('%02X',t[i])
end
return table.concat(t)
end
-----------------------------------------------
-- Serialize object into string --
-- @param o boolean|number|string|table --
-- @return Return the serialized string --
-- @example local str = to_str({x=100}) --
-----------------------------------------------
function to_str(o)
local i=1
local t={}
local f
f=function(x)
local y=type(x)
if y=="number" then
t[i]=x
i=i+1
elseif y=="boolean" then
t[i]=tostring(x)
i=i+1
elseif y=="string" then
t[i]="\""
t[i+1]=x
t[i+2]="\""
i=i+3
elseif y=="table" then
t[i]="{"
i=i+1
local z=true
for k,v in pairs(x) do
if z then
z=false
t[i]="\""
t[i+1]=k
t[i+2]="\""
t[i+3]=":"
i=i+4
f(v)
else
t[i]=","
t[i+1]="\""
t[i+2]=k
t[i+3]="\""
t[i+4]=":"
i=i+5
f(v)
end
end
t[i]="}"
i=i+1
else
t[i]="nil"
i=i+1
end
end
f(o)
return table.concat(t)
end
----------------------------------------------------------------------------------------------------------
-- Add the data point into the table --
-- @param t table --
-- i string data stream or data stream template name --
-- a number millisecond-level timestamp, from (00:00:00 UTC, January 1) --
-- If the value is 0, the current time is used --
-- v boolean|number|string|table Boolean, number, string, json --
-- c string identify the data point attribution (device AuthCode, optional) --
-- If the value is “” or nil, it means that the data point is to establish a TCP connection --
-- @return Return true in case of success and false otherwise --
-- @example local ok = add_val(t,"dsname",0,100) --
----------------------------------------------------------------------------------------------------------
function add_val(t, i, a, v, c)
if type(t)~="table" then
return false
elseif type(i)~="string" then
return false
elseif type(a)~="number" then
return false
else
local o = type(v)
if o~="boolean" and o~="number" and o~="string" and o~="table" then
return false
end
local n = {i=i,v=to_hex(v)}
-- n.v = n.v .. "("..o..")"
if a~=0 and a~=nil then
n["a"]=a
end
if c~=nil then
n["c"]=c
end
-- list push_back --
if t.h==nil then
t.h={nil,n}
t.t=t.h
else
t.t[1]={nil,n}
t.t=t.t[1]
end
end
return true
end
--------------------------------------------------------------
-- Serialize the table into json string --
-- @param t table,table constructed by add_val and add_bin --
-- @return Return the serialized json string --
-- @example local json = to_json(t) --
--------------------------------------------------------------
function to_json(t)
local i=1
local o={}
local n
o[i]="["
i=i+1
n=t.h
while n~=nil do
if n[2]~=nil then
o[i]=to_str(n[2])
i=i+1
end
n=n[1]
if n~=nil then
o[i]=","
i=i+1
end
end
o[i]="]"
return table.concat(o)
end
------------------------------------
-- begin- add the user-defined value or function, etc. --
-- end- add the user-defined value or function, etc.--
------------------------------------
------------------------------------------------------------------------------------------
-- Set the data to be issued regularly (optional) --
-- @param dev user_data Device manager --
-- @return None --
-- @notice This is a callback function and cannot be called in the script. --
-- @readme dev Provide the following functions:： --
-- dev:add(interval,name,data) Add the data to be issued regularly. --
-- @param interval number Time interval (in seconds) of data issuing --
-- name string Name (unique) --
-- data string Data (binary), converted into a string via lua--
-- @return Return true in case of success and false otherwise --
-- @notice The average frequency of regular data issuing does not exceed 1, and 1/interval_1+...+1/interval_n<=1 --
-- @example local ok = dev:add(10,"test","\1\1\0\150\0\37\253\29") --
-- dev:timeout(sec) Set the device response timeout (seconds) for data issuing --
-- @param sec int Response timeout (seconds) --
-- If the value is 0, it means that the device response timeout is not detected. --
-- @return None --
-- @example dev:timeout(3) --
-- dev:response() The device responds successfully. --
-- @param None --
-- @return None --
-- @example dev:response() --
-- dev:send(data) Send data to the device --
-- @param data string Data (binary), converted into a string via lua --
-- @return None --
-- @example dev:send("\2\2\0\150\0\37\206\89") --
------------------------------------------------------------------------------------------
function device_timer_init(dev)
-- Add user-defined code --
-- Example: --
dev:timeout(3)
dev:add(10,"dev1","hello") --Send a packet of data (hello) at intervals of 10 seconds.
end
-----------------------------------------------------------------------------------------------------------
-- Analyze the data uploaded by the device --
-- @param dev user_data Device manager --
-- @return size Indicate the bytes of data uploaded by the analysis device, and json means the set of analyzed data points, in the following format: --
-- [ --
-- { --
-- "i" : "dsname1", // Data stream or data stream template name 1 --
-- "a" : 1234567890, // Millisecond-level timestamp, from (00:00:00 UTC, January 1 --
-- // If the value is 0, it means that the current time is used. --
-- "v" : 123 | "123" | {...} // Boolean, number, string, json --
-- "b" : "0A0B0C0D..." // Binary data (hexadecimal string), mutually exclusive with v, not saved at the same time --
-- "d" : xxx | "xxx" | {...} // Used to describe b (optional); Boolean, number, string, json --
-- "c" : "authcode1" // Used to identify the data point attribution (device AuthCode, optional) --
-- // If it is “” or does not exist, it means that a TCP connection is established for data point attribution. --
-- } --
-- ... --
-- { --
-- "i" : "dsnamen", // Data stream or data stream template name 1 --
-- "a" : 1234567890, // Millisecond-level timestamp, from (00:00:00 UTC, January 1) --
-- // If the value is 0, the current time is used. --
-- "v" : 123 | "123" | {...} // Boolean, number, string, json --
-- "b" : "0A0B0C0D..." // Binary data (hexadecimal string), mutually exclusive with v, not saved at the same time --
-- "d" : xxx | "xxx" | {...} // Used to describe b (optional); Boolean, number, string, json --
-- "c" : "authcoden" // Used to identify the data point attribution (device AuthCode, optional) --
-- // If it is “” or does not exist, it means that a TCP connection is established for data point --
-- } --
-- ] --
-- @notice This is a callback function and cannot be called in the script. --
-- @readme dev Provide the following functions:： --
-- dev:add(interval,name,data) Provide the following functions: --
-- @param interval number Time interval of data sending (seconds) --
-- name string Name (unique) --
-- data string Data (binary), converted into a string via lua --
-- @return Return true in case of success and false otherwise. --
-- @notice The average frequency of regular data issuing does not exceed 1, and 1/interval_1+...+1/interval_n<=1 --
-- @example local ok = dev:add(10,"test","\1\1\0\150\0\37\253\29") --
-- dev:timeout(sec) Set the device response timeout (seconds) for data --
-- @param sec int Response timeout (seconds) --
-- If the value is 0, it means that the device response timeout is not detected. --
-- @return None --
-- @example dev:timeout(3) --
-- dev:response() The device responds successfully. --
-- @param None --
-- @return None --
-- @example dev:response() --
-- dev:send(data)Send data to the device --
-- @param data string Data (binary), converted into a string via lua --
-- @return None --
-- @example dev:send("\2\2\0\150\0\37\206\89") --
-- dev:size() Get the device data size (bytes) --
-- @param None --
-- @return Return the device data size (bytes) --
-- @example local sz = dev:size() --
-- dev:byte(pos) Get the device data (bytes) corresponding to pos --
-- @param pos number Specified position to get data, [1,dev:size()+1) --
-- @return Return the device data (int) in case of success and nil otherwise. --
-- @example local data = dev:byte(1) --
-- dev:bytes(pos,count)Get the corresponding number of device data from pos, count the device data --
-- @param pos number Specified start position to get the data, [1,dev:size()+1) --
-- count number Specified total number of data, [0,dev:size()+1-pos] --
-- @return Return the device data (string) in case of success and nil otherwise. --
-- @example local datas = dev:bytes(1,dev:size()) --
-----------------------------------------------------------------------------------------------------------
function device_data_analyze(dev)
local t = {}
local a = 0
-- 添加用户自定义代码 --
-- 例如： --
local s = dev:size() --Get the uplink data length
add_val(t,"ds_test",0,dev:bytes(1,s))
dev:response()
dev:send("received") --Send response
-- return $1,$2 --
-- 例如： --
return s,to_json(t) --Save the data
end
Where: device_data_analyze(dev) is the uplink data analysis function of the terminal, and each packet of data will be processed; and device_timer_init(dev) is the timer initialization function, which is used to send data at specified intervals.
Step 4: Establish a connection.
Power on the device, establish a TCP connection with the OneNET access service (domain name: dtu.onenet.hk.chinamobile.com), and send a login message in the following format:
*$PID#$AUTH_INFO#$PARSER_NAME*
Example:
*12346#sn823mdn#testlua*
The meanings of parameters are as follows:
PID: Product ID, the unique digital identifier of the product generated by OneNET when the product is created;
AUTH_INFO: Device authentication information, the unique string identifier specified by the user for the device in registration;
PARSER_NAME: name of the user-defined parsing script, the unique string identifier specified by the user when the script is uploaded.
If the connection is established successfully, there will be a device online mark:
Step 5: Display the data stream and view data points.
Click “Data Display” under “Device Management” of OneNET to enter the data display page. Click the drop-down menu to view the recently uploaded data points. You can also select the time interval to view the historical time.
