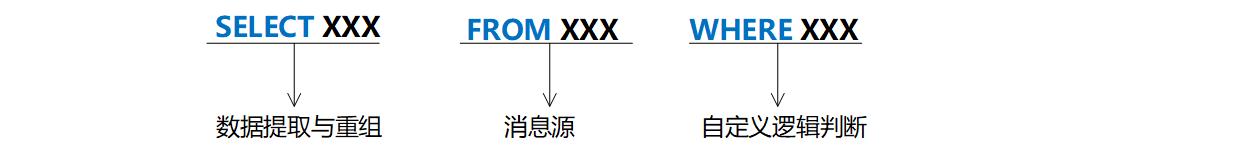

OneNET designs the basic message format of the system as json, of which the data can be mapped to a virtual table, with Key corresponding to the column and Value corresponding to the column value. Rule Engine supports SQL statements to process the data, as shown below:

Examples

When device data point message is selected as source, the basic message format is as follows:

{
    "sysProperty": {
        "messageType": "deviceDatapoint",
        "productId": "90273"
    },
    "appProperty":{
        "deviceId": "102839",
        "dataTimestamp": 15980987429000,
        "datastream":"weather"
    },
    "body":{
        "temperature": 30,
        "humidity": "47%"
    }
}

SQL example:

SELECT appProperty.deviceId as did, body as weather FROM /deviceDatapoint/ds WHERE body.temperature > 10

This SQL statement indicates:

Select the message uploaded to the data point by the device. When the value of body is bigger than 10, extract appProperty.deviceId property and rename it as did; extract body property and rename it as temperature, and forward it after message restructuring.

The message processed by this SQL outputs the following information:

{
    "did": "90273",
    "weather": {
        "temperature": 30,
        "humidity": "47%"
    }
}

SELECT

• By default, it’s *, namely, no extraction and restructuring operation is performed.
• The field supports as, and can rename the extracted property, as shown in the example below:

  SELECT body as temperature


• Support using json path to fetch property values from nested json, as shown in the example below:

  SELECT appProperty.deviceId as did


• Support the extraction and renaming of more than one properties by using comma (,), as shown below:

  SELECT appProperty.deviceId as did, appProperty.dataTimestamp as t


• Do not support Child SQL subquery
• The SELECT statement supports up to 10 fields.

WHERE

The WHERE statement is used to define rule trigger conditions.

• Support using json path to fetch property values from nested json, which is the same as SELECT, as shown in the example below:

  SELECT * WHERE body.temperature > 10


• Support numerical judgments such as Greater Than, Less Than and Equal To, as shown in the example below:

  SELECT * WHERE body.temperature = 10


• Support character matching judgment, as shown in the example below:

  SELECT * WHERE body.humidity = '47%'


• Support "AND" conditional operations of multiple expressions. An example is as follows:

  SELECT * WHERE body.temperature > 10 AND body.temperature < 30


  See the table below for further information about expression support.

Conditional Expression Support List
