Use process

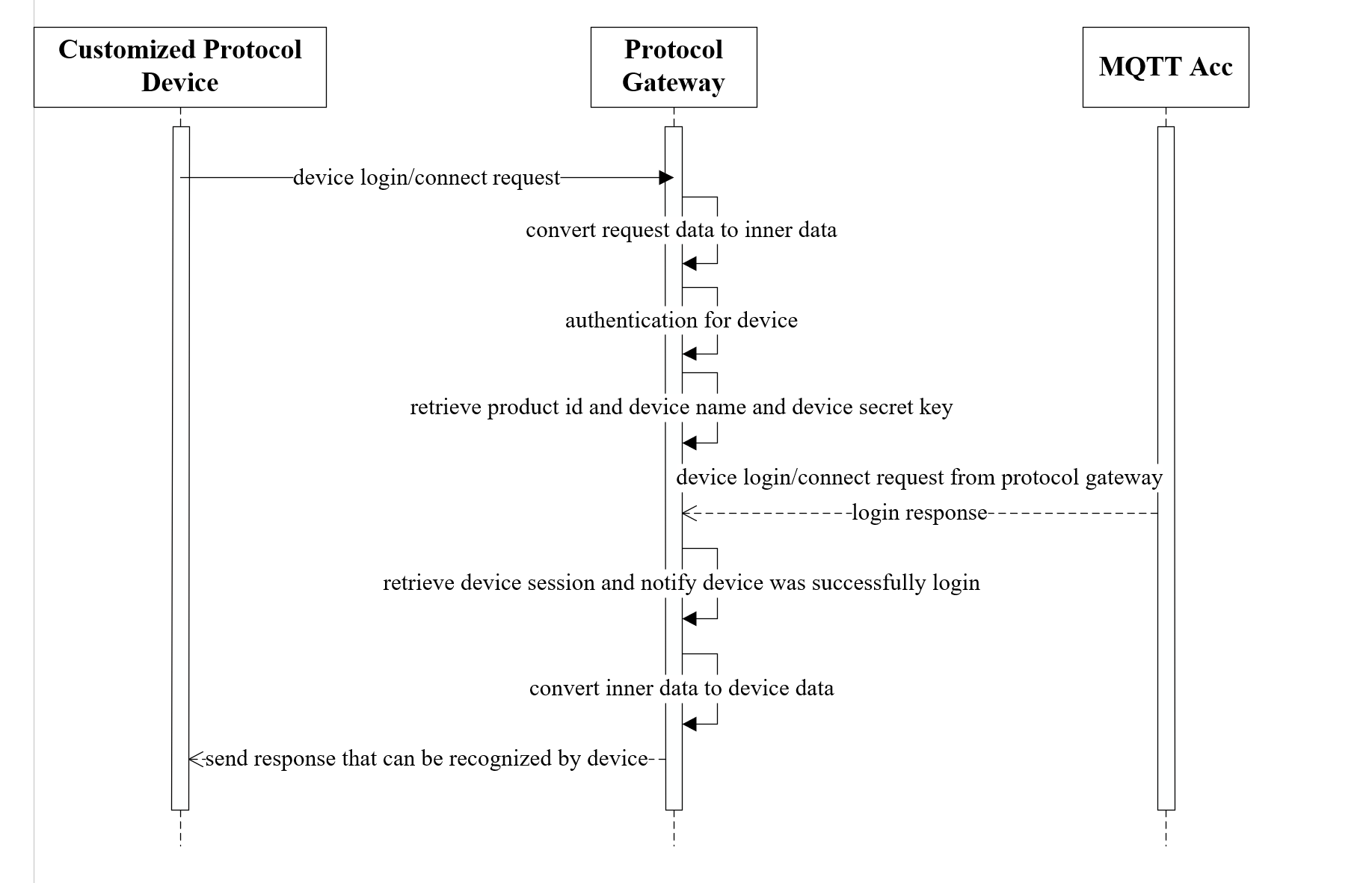

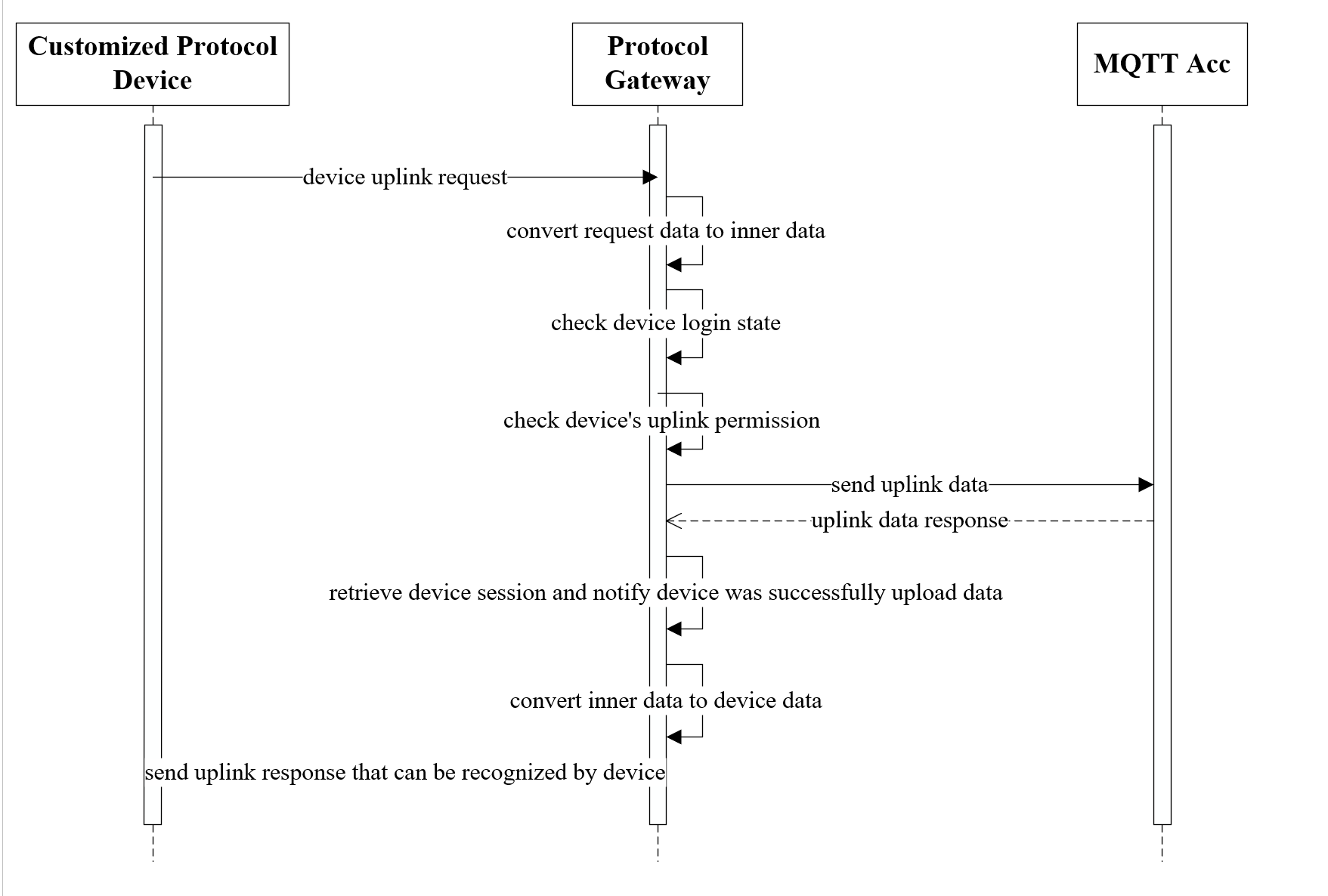

User’s device is connected to the Gateway service through a custom private protocol. When the device needs to log in or upload data to the OneNET platform, the Gateway service uses the Custom Protocol Decoder provided by the user to convert device data into internal data format and then into standard MQTT data, and then interacts with the platform.

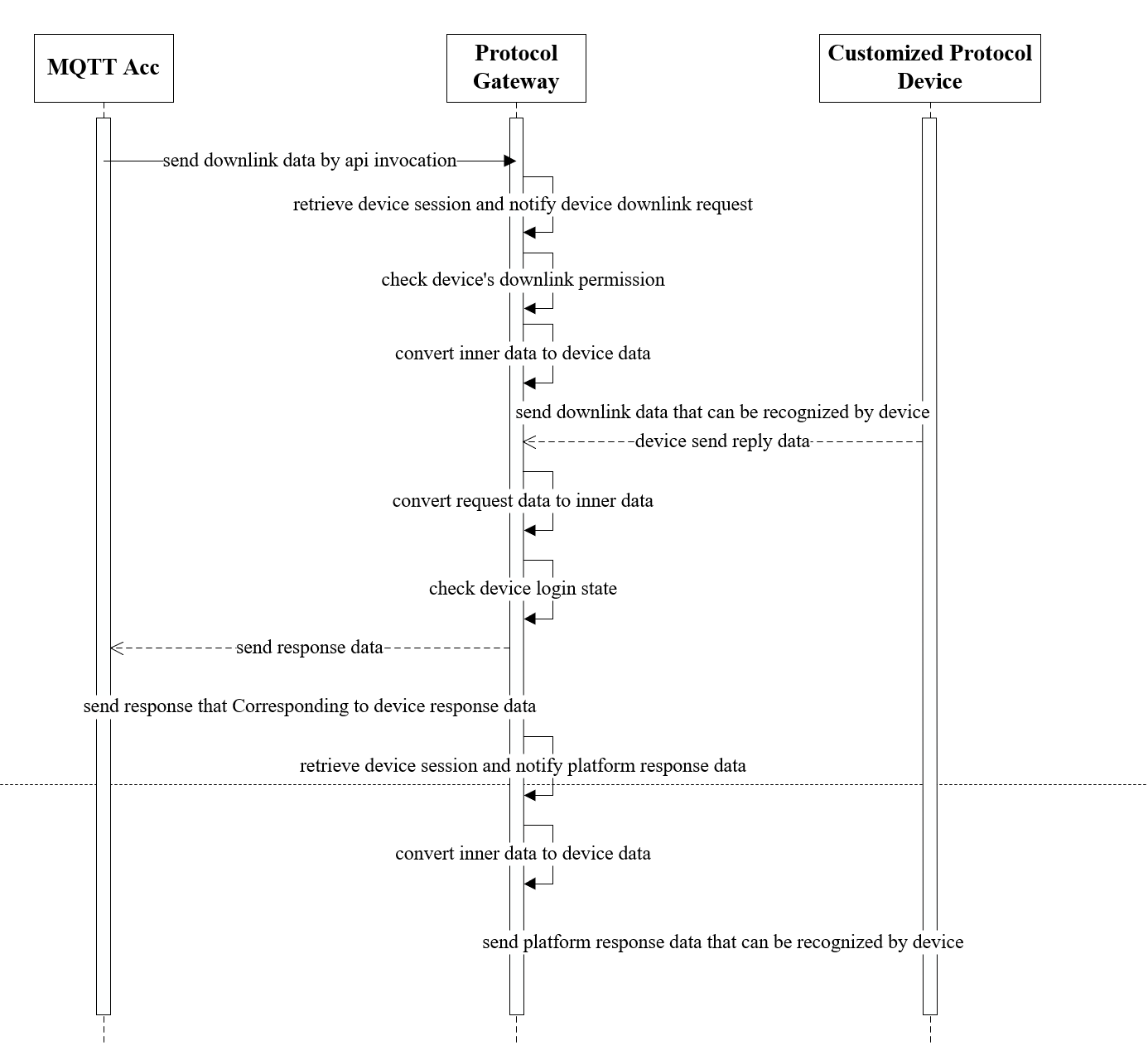

When user sends data downstream to the designated device through the OneNET platform, the Gateway converts MQTT data into internal data format after receiving the downlink data, and then uses the Custom Protocol Encoder provided by the user to convert the internal data into numbers that the user’s device can read, and then sends them to the device.
